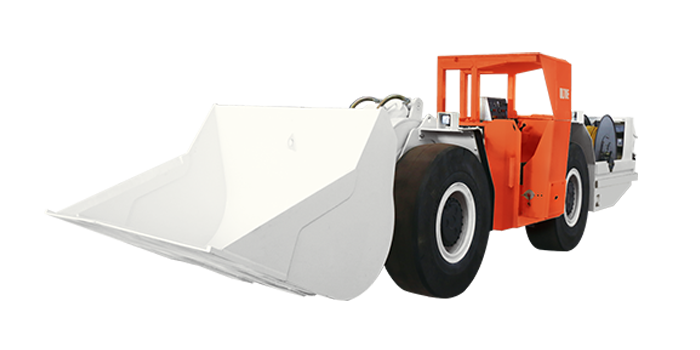

Underground Electric Loader
UL70E
Other products of the same category
FEATURES

Designed for underground loading, hauling and dumping, LGMRT UL70E is electrically driven with a tramming capacity of 7 tons and is suitable for a tunnel width of 3.4 meters. Equipped with the advantages of easy operation, easy maintenance and high reliability, it can handle any harsh underground environment. The UL70E is developed from the Sandvik LH306E, whose predecessor is the well-known EJC145E from Canada, which has been widely used in North America and China, and has received widespread accolades from customers, thanks to its reliable performance and safety oriented design.

  • HIGHER RELIABILITY
  • Renowned and reliable hydraulic components are used, including PERMCO hydraulic pumps, EATON hydraulic hoses and REXROTH valves; DANA powertrain components.
  • ERGONOMICAL OPERATION
  • All instruments, gauges and alarms are integrated into one control panel; The positions of the steering wheel and the working lever are ergonomically designed; The blind zone area is largely reduced thanks to the wider visual angle from the canopy.
  • EASY MAINTENANCE
  • Centralized manual lubrication; Centralized pressure measuring; 80% of the maintenance is done on the ground level, minimizing the need for climbing onto the top of the machine.
  • HIGH PRODUCTIVITY
  • The payload of UL70E is 7 tons, which is 500kg more than the original design.
parameter
  • Standard bucket(Can be customized)(m³) 3.5
  • Rated load(kg) 7000
  • Dimensions( W×H×L)(mm) 2195×2324×8651
  • Wheelbase(front/rear)(mm) 3050(1525/1525)
  • Wheel space (mm) 1510
  • Min. dumping distance(-40°dumping angle)(mm) 1450
  • Max. Dumping height(-40°dumping angle)(mm) 1500
  • Min. Ground clearance(mm) 374
  • Weight(kg) 20000
