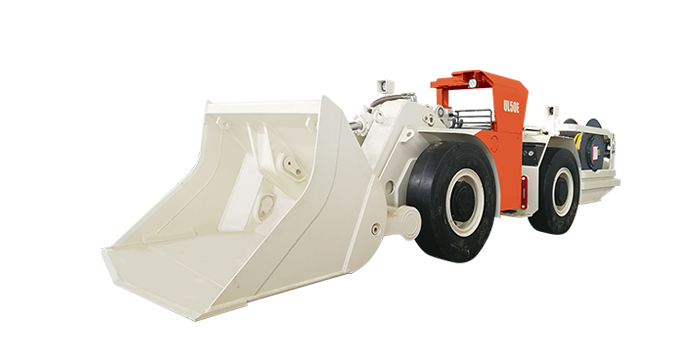

Underground Electric Loader
UL50E
Other products of the same category
FEATURES

UL50E electric underground loader is designed for underground loading and hauling operation. It is capable of adapting to the harsh environment and has the advantages of simple operation and maintenance, high reliability. The tramming capacity of UL50E is 4.5ton and it is applicable to underground tunnel with a width above 2.5m.

  • HIGHER SECURITY
  • Safety canopy designed according to FOPS and ROPS safety standards; Spring brake, hydraulic release brake system ensures brake safety.
  • LOWER OPERATION COSTS
  • Original CAVOTEC cable system extends maintenance cycle.
  • SIMPLER OPERATION AND EASIER MAINTENANCE
  • The position of the steering and working handle is designed in accordance with ergonomics; Wider work perspective,reduce the blind area; Manual lubrication system and pressure detection system are centralized.
parameter
  • Standard bucket(Can be customized)(m³) 2.5
  • Rated Load (kg) 4500
  • Dimensions( W×H×L)(mm) 1770×2050×7596
  • Wheelbase(front/rear)(mm) 2540
  • Min. ground clearance (mm) 290
  • Wheel space (mm) 8650
  • Min. dumping distance(mm) 938
  • Max. Dumping height(mm) 1716
  • Weight (kg) 13400
